REBAR DETAILING OF FOUNDATION

-

 Foundations

SCOPE:

 Pile cap

 Pad

 Strip footing

 Raft

 SOG (SLAB ON GRADE)

DETAILING STANDARDS:

Nominal Cover to Reinforcement:

Internal : (25mm or bar size) + ΔCdev (5 or 10mm)
External : 35mm + ΔCdev (5 or 10mm)
Earth face : 45mm + ΔCdev (5 or 10mm)
Bottom cover for Piled foundations : 100mm (or 75mm)

Spacing and Size of bars:

Minimum spacing : 75mm (at laps)
Maximum spacing : 300mm
Minimum bar size : 16mm (Except for lacers)

Bar arrangements:

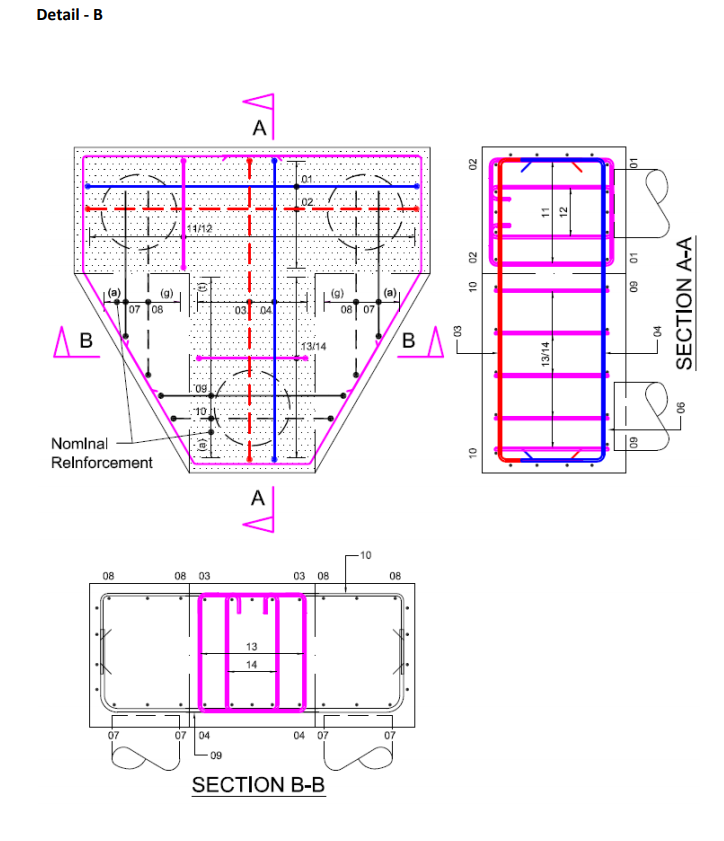

TYPICAL PILE CAP BAR ARRANGEMENT




ALTERNATE METHOD OF TWO PILE CAP


ALTERNATE METHOD OF THREE PILE CAP






Pad Footings:





Strip footings:



Raft:




Starters from Foundations:





Steps in Foundations:



Recess in Raft or Slab:




 SOG: (SLAB ON GRADE)


Corner Details for Edge Thickening:


Side Bars Arrangements Edge Thickening:


 Slab Thickening Sections:



Where,
T A is Tension anchorage
T L is Tension Lap
